Testo 350 Flue Gas Emissions Analyser

Enquire for Pricing

Analysis Box for exhaust gas analysis systems

Description

Overview of the testo 350 flue gas emissions analyser:

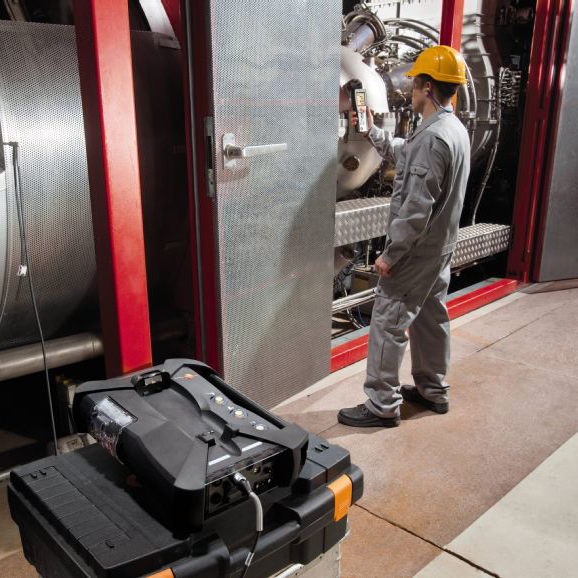

The portable exhaust gas analyser testo 350 is the ideal tool for professional flue gas analysis. Furthermore, the Control Unit is the removable operation and display unit of the testo 350.

Display

The presentation of the measurement values takes place via the colour graphic display. Thanks to the internal memory, measurement data can be transferred from the analyser box to the Control Unit.

Versatile

If required, several analyser boxes can be operated and controlled with one Control Unit. Additionally, the measurement technology is situated in the analyser box. This exhaust gas analyser has robust housing has integrated impact protection.

Downtimes

Downtimes due to contamination of the instrument are almost completely eliminated. Inherently closed chambers protect the interior of the instrument from dirt from the surroundings.

Free App

Operation can also be carried out in direct connection to a PC or notebook or via Android smartphone or tablet with the free App, as an alternative to the Control Unit. After programming, the analyser box is able to carry out measurements and store measurement data independently.

Additional information

Weight 4.8 kg
Dimensions 33 × 43.8 × 12.8 cm
Single

testo 350

Specifications

Dimensions 330 x 128 x 438 mm
Weight 4800 g Weight 4800 g
Storage temperature -20 to +50ºC Storage temperature -20 to +50ºC
Operating temperature -5 to +45ºC Operating temperature -5 to +45ºC
Housing material ABS Housing material ABS
Memory 250,000 readings Memory 250,000 readings
Power supply AC mains unit 100V to 240V (50 to 60 Hz) Power supply AC mains unit 100V to 240V
(50 to 60 Hz)
DC voltage input 11 V to 40 V DC voltage input 11 V to 40 V
Max. dust load 20 g/m. dust in flue gas Max. dust load 20 g/m. dust in flue gas
Dewpoint calculation 0 to 99ºC Dewpoint calculation 0 to 99ºC
Max. positive pressure max. +50 mbar Max. positive pressure max. +50 mbar
Max. negative pressure min. -300 mbar Max. negative pressure min. -300 mbar
Pump through-flow 1 l/min. with through-flow monitoring Pump through-flow 1 l/min. with through-flow monitoring
Hose length 16.2 m
(corresponds to 5 probe hose extensions)
Hose length 16.2 m
(corresponds to 5 probe hose extensions)
Max. humidity load +70ºC dewpoint temperature Max. humidity load +70ºC dewpoint temperature
Trigger input Voltage 5 to 12 Volt

(rising or trailing edge) pulse width > 1 sec

load: 5 V/max, 5 mA, 12 V/max. 40 mA

Guarantee

Measuring instrument

2 years
Gas sensors CO, NO, NO2, SO2, H2S, CXHY: 1 year

O2 sensor: 1.5 years

CO2-IR sensors: 2 years

Pumps 0.5 years
Solenoid valves 0.5 years
Thermocouples 1 year
Rechargeable batteries 1 year
Probes 2 years
Guarantee conditions https://www.testo.com/guarantee
Protection class IP40
Battery life Maximum load approx. 2.5 h

Downloads

Testo 350 Datasheet

Video
