Testo 340 Flue Gas Analyser

Enquire for Pricing

The handy, easy-to-operate emission measuring instrument Testo 340 is the right tool for many different emission measurements. The compact design and the reliable technology make it the ideal measuring instrument for commissioning, service and maintenance work and in test measurements on industrial burners, stationary industrial engines, gas turbines, and thermal processes.

Description

Overview of the Testo 340 Flue Gas Analyser

The handy, easy-to-operate Testo 340 flue gas analyser emission measuring instrument is the right tool for many different emission measurements.

Design

The compact design and the reliable technology make it the ideal measuring instrument for commissioning, service and maintenance work and in test measurements on industrial burners, stationary industrial engines, gas turbines, and thermal processes.

Unique measuring range

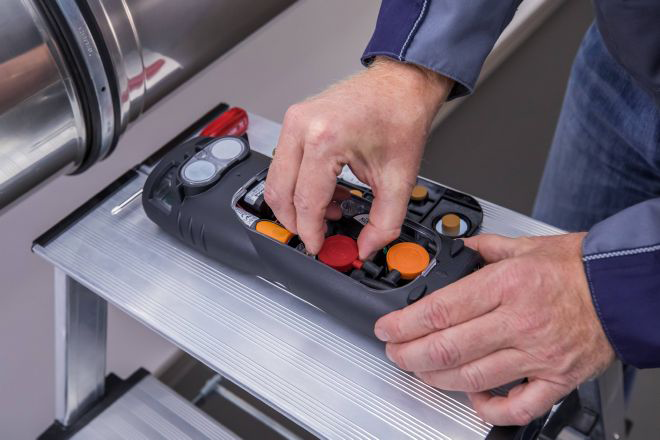

The unique measuring range extension allows unrestricted measurements to be carried out even at high gas concentrations. The Testo 340 is equipped with an O2 sensor as standard. Three further gas sensors can be configured individually, in order to be able to adapt the instrument optimally to the respective measurement task.

Free App

The instrument can also be operated remotely from your Android Smartphone or tablet using the free App.

Additional information

Weight 0.96 kg
Dimensions 28.3 × 10.3 × 6.5 cm
Model

Testo 340 Diesel Kit

Specifications

Memory Maximum Per folder Per site 100 folders Max.

10 sites

Max. 200 logs.

The max. number of logs is determined by the number of folders or sites

User-defined fuels 10 user-defined fuels incl. test gas as fuel

Regulated diaphragm pump

Pump flow 0.6 l/min (regulated)
Hose length max. 7.8 m (corresponds to two probe hose extensions)
Max. pos. press./flue gas +50 mbar
Max. neg. press./flue gas -200 mbar
Weight 960g
Dimensions 283 x 103 x 65 mm
Storage temperature -20 to +50 ÅãC
Operating temperature -5 to +50 ÅãC
Display  Graphic display 160 x 240 pixels
Power supply Battery block 3.7 V / 2.4 Ah

Mains unit 6.3 V / 2 A

Housing material TPE PC
Protection class IP40

 Guarantee

Measuring instrument



2 years
Gas sensors CO, NO, COlow, NOlow, NO2, SO2: 1 year

O2: 1.5 years

Pumps 0.5 years
Solenoid valves 0,5 years
Thermocouples 1 year
Rechargeable batteries 1 year
Probes 2 years
Guarantee conditions https://www.testo.com/guarantee

Downloads

Testo 340 Datasheet

Testo 340 Kit Datasheet
