Name: Personal Gas Detection - Single Gas - 03 Series - GP-03
SKU: 57208

Description

LEL Single Gas Monitor Overview:

Individuals need personal protection in hazardous areas at all times without adding extra bulky equipment. This is why the 03 Series can provide that kind of protection at an affordable price. The GP‐03 is a personal LEL single gas monitor, designed for protection from exposure to combustible hydrocarbons (LEL).

Operation

It operates for 35 hours on alkaline and 30 hours on rechargeable NiMh. Additionally, it has 2 preset alarms that are user adjustable. As well as this, it’s equipped with visual, audible, and vibration alarms, as standard.

Sensors

Replacement sensors are inexpensive, easily field replaceable, and are interchangeable with other popular Control Equipment instruments. Instruments include the GX‐2009, GX‐2012, and GasWatch 2. Sensors for LEL have a life expectancy of over 2 years.

Safety rating

Furthermore, the 03 Series monitor is impact, dust, and water resistant with an IP‐67 rating. It’s also safe for use in hazardous locations, classified as intrinsically safe IECEx.

Additional information

Weight	0.8 kg
Dimensions	5.4 × 2.4 × 6.7 cm
Single	GP-03

Specifications

LEL Single Gas Monitor Specifications:

Model Name	GP‐03
Gas Detected	Combustible gas
Detection Principle	Catalytic combustion
Detection Range (Increments)	0 – 100% LEL (1% LEL increments)
Alarm Set Points	1st 10% LEL 2nd 15% LEL Over 100% LEL
Alarm Types	Gas alarms: 1st and 2nd (user adjustable), OVER alarm, STEL and TWA. Trouble alarms: Sensor connection, low battery circuit failure, and calibration range error.
Alarm Methods	Gas alarm: flashing LED’s, intermittent buzzer, flashing gas value and vibration. Trouble alarm: flashing LED’s, intermittent buzzer and display of error message. STEL & TWA alarms: flashing LED’s, intermittent buzzer, flashing gas value and vibration.
Gas Sampling	Diffusion
Response Time	T90 in 30 seconds
Accuracy which ever is greater	± 5% of reading or ±2% LEL

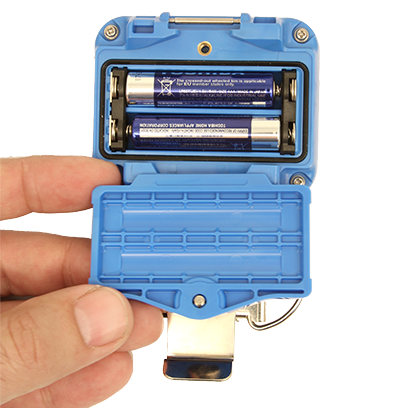

Power Options	Alkaline dry cell (2‐AAA size)
Continuous Operation	Alkaline: 35 hrs
Safety Rating	IECEx approved Ex ia IIC/IIB T4/T3 Ga Ex ia Ma
Dimensions & Weight	54mm x 67mm x 24mm and weighing only 80g
Display	Digital LCD, gas name & concentration, auto backlighting during alarm, operation icon, battery icon
Operating Temp. & Humidity	‐20°C ~ 50°C, Humidity below 90% RH (non‐condensing)

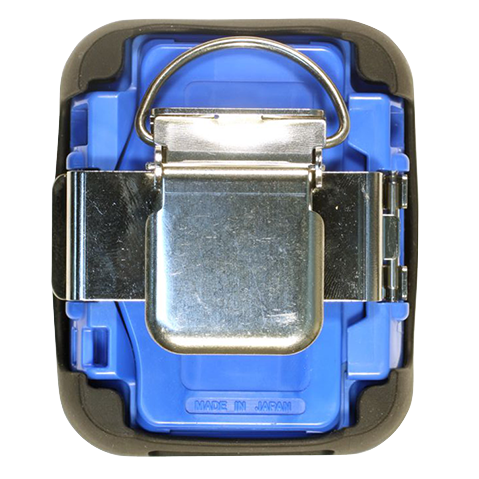

Standard Accessories	• Rubber protective boot • Alligator clip • Data logging software • Alkaline batteries • Wrist strap
Optional Accessories	• Calibration adapter • Charger unit • Wrist strap • Calibration kit • Belt clip • Data logging download cable
Special Functions	• Manual backlight for LCD (automatically lit during alarm) • Peak hold, STEL & TWA
Warranty	2 Year warranty

Downloads

Download GP-03 Datasheet
