Name: Personal Gas Detection - Multi Gas Detector - GX-6000
SKU: 57214

Description

Overview of the personal multi gas detector:

Simply put, the GX-6000 is a game changer, because this powerful hand-held personal multi gas detector is capable of simultaneously monitoring up to 6 gases.

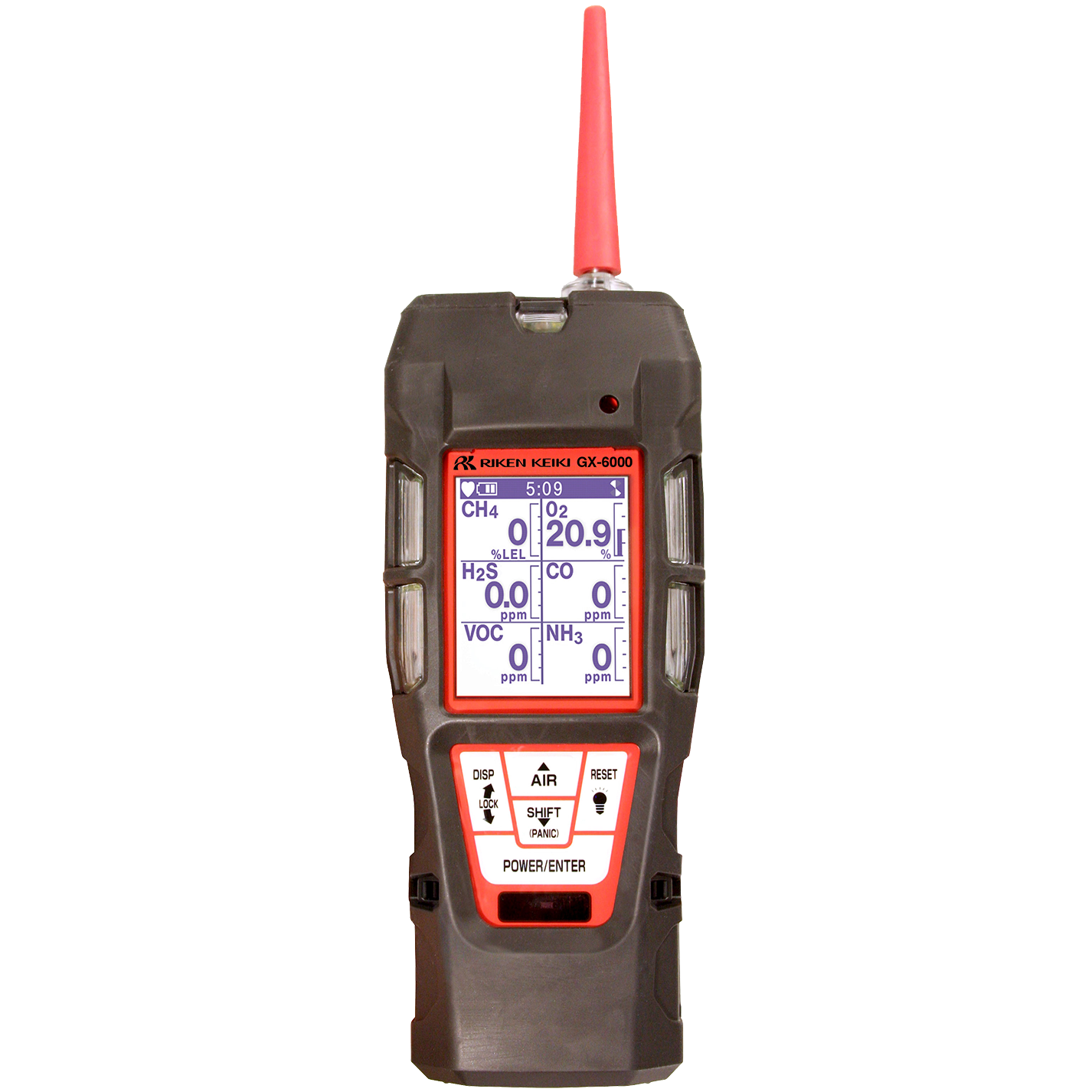

Including the standard 4 confined space gases which incorporates combustibles, O2, CO, & H2S. The GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors.

PID Sensor

Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display. This instrument can operate as a single gas PID unit or a multifunctional tool utilising all 6 channels.

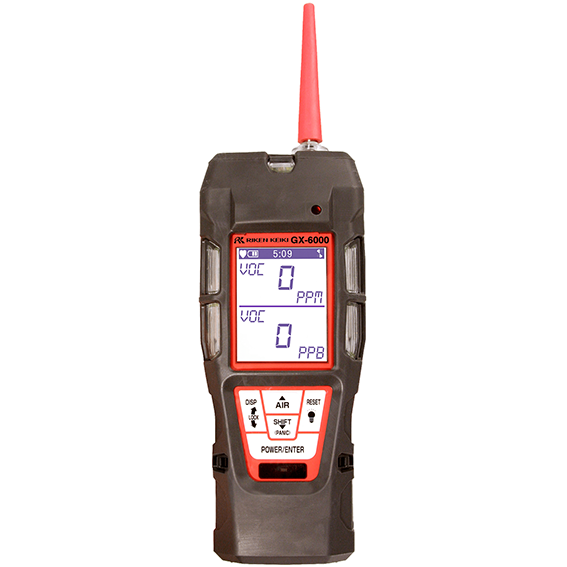

This one to six gas monitor with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalised favourites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s.

Rugged Design

The rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot. Also equipped with a dust and water resistant enclosure with an IP-67 rating.

With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. Because of the vibration and loud audible alarms, the one to six personal monitor will easily alert users when needed.

Additional information

Weight	0.6 kg
Dimensions	20.1 × 7 × 5.4 cm
Model	GX-6000, GX-6000 Benzene

Specifications

Common Specifications of the personal multi gas detector
Alarm Types	Gas Alarm	Man-down	Trouble
	Low and high adjustable	1st – self reset 2nd – latching	Low flow Sensor connection. Low battery Circuit error Calibration range.
Sample Method	Sample draw pump, flow rate 0.45 LPM 30 meter sample range.
Display	Digital LCD, auto back light, peak bar display, auto display rotation, and customise order of gases.
Audible Alarm	95 dB at 30cm
Continuous Operation	24 hours on Lithium-ion battery pack Complete recharge in 3 hours 8 hours Alkaline battery pack (3 AA size in each pack)
Operating Temp. & Humidity	-20°C to +50°C, 0- 95% RH non-condensing
Dimensions	70mm W x 201mm H x 54mm D 600g (with lithium battery pack).
Case Material	Dust and water resistant with IP-67 approval (exclude sample hose and probe).
Safety Design / Approvals	Explosion proof: IECEx , ATEX , TIIS , Explosion class : Ex ia IIB T4/T3 Ga -20°C ≤ Ta ≤ +50°C Ex ia IIC T4/T3 Ga -20°C ≤ Ta ≤ +50°C Others: CE Marking
Standard Features	2 Smart sensors slots auto recognise sensor changes. Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases. Pump and circuit status indicators. User & station ID selection menu. Data logging (interval, alarm trend, station and user ID). Snap logging – on demand data logging. Demand zero / Auto zero. BUMP and CAL expiration alarm. Flashlight IrDA communication. LEL sensor protection mode.
Standard Accessories	• Taper nozzle Accessories • Hand strap • LCD protect nozzle • Belt clip • Rubber boot • Li-Ion battery unit (BUL-6000)
Optional Accessories	• Alkaline battery pack & charger • Filter set • IrDA cable
Warranty	Two years material (including sensors) and workmanship. One year for PID sensor.

Detection Ranges

Gases & Detectable Ranges of the personal multi gas detector
Gas	Measuring Range		Minimum Display		Alarm Set Points	Accuracy (which ever is greater)
Catalytic
Hydrocarbons (CH4, std)	0 – 100% LEL		1% LEL		A1: 5%LEL	± 5% of reading or ± 2% LEL
					A2: 10%LEL
Galvanic
Oxygen (O2)	0 – 40% Vol.		0.1% Vol.		A1: 19.5 Vol.	± 0.5% O2
					A2: 23.5 Vol.
Electro Chemical
Carbon Monoxide (CO)	0 – 500 ppm		1 ppm		A1: 30 ppm	± 5% of reading or ± 5 ppm
					A2: 60 ppm
					TWA: 30 ppm
					STEL: 60 ppm
Hydrogen Sulfide (H2S)	0 – 100 ppm		0.5 ppm		A1: 10 ppm	± 5% of reading or ± 2 ppm
					A2: 15 ppm
					TWA: 10 ppm
					STEL: 15 ppm
Toxics (EC Sensors)
Ammonia (NH3)	0 – 400 ppm		0.5	ppm	A1: 25 ppm	± 10% of reading or ± 5% of full scale
					A2: 35 ppm
Hydrogen Cyanide (HCN)	0 – 15	ppm	0.1 ppm		A1: 5 ppm
					A2: 10 ppm
Nitrogen Dioxide (NO2)	0 – 20	ppm	0.05 ppm		A1: 3 ppm
					A2: 5 ppm
Sulfur Dioxide (SO2)	0 – 99.90 ppm				A1: 2 ppm
					A2: 5 ppm

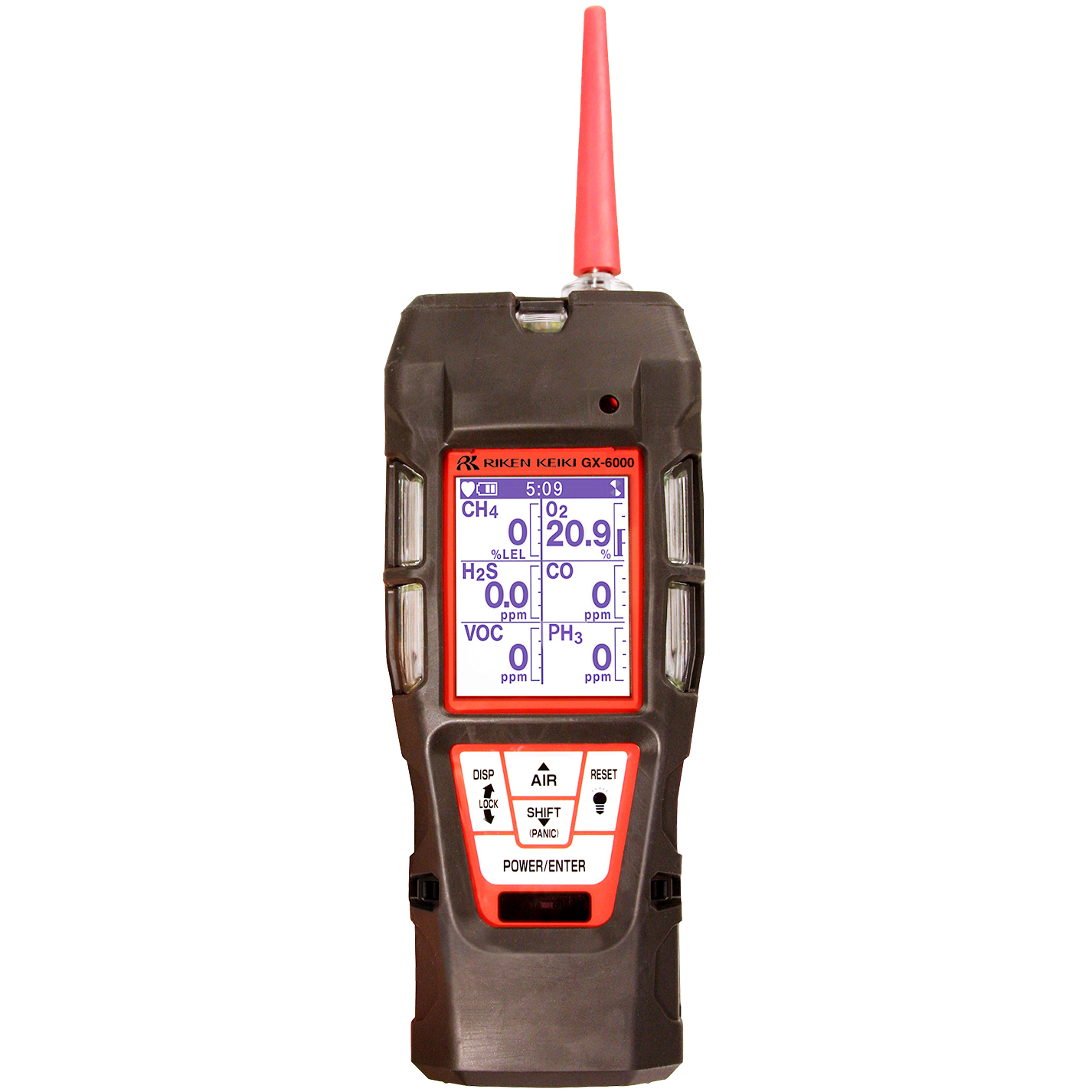

Phosphine (PH3)	0 – 20	ppm*	0.2	ppm	A1: 0.3 ppm
					A2: 1 ppm
IR Sensors
Carbon Dioxide (CO2)	0 – 10,000 ppm		20 ppm		A1: 5,000 ppm	± 5% of reading or ± 2% of full scale
					TWA: 5,000 ppm
	0 – 10% Vol.		0.02%		A1: 0.50% Vol
					A2: 3.00% Vol
					STEL: 3.00% Vol
					TWA: 0.50% Vol
Methane (CH4)	0 – 100% LEL 0 – 100% Vol.		Vol. 1% LEL/ 0.5% Vol		A1: 5% LEL *
Hydrocarbons (HC)	0 – 100% LEL 0 – 30% Vol.				A2: 10% LEL *
PID Sensors
600 VOC 10.6 Lamp	0 – 50,000 ppb		1 ppb: (< 5000 ppb) 10 ppb: (> 5,000 ppb)		A1: 5,000 ppb	± 10% of reading, ± 1 digit
					A2: 10,000 ppb
	0 – 6,000 ppm		0.1 ppm: (< 600 ppm) 1 ppm: (> 600 ppm)		A1: 50 ppm
					A2: 100 ppm
					STEL: 100 ppm
					TWA: 50 ppm
Benzene Specific	0.1 – 50 ppm		0.01 ppm ( 0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm)		No alarms
300 VOC’s 10.0 Lamp	0 – 100 ppm		0.01 ppm ( 0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm)		A1: 5 ppm A2: 10 ppm
High Voltage 11.7 Lamp	0 – 1000 ppm		0.1 ppm		A1: 400 ppm A2: 1,000 ppm

Downloads

GX-6000 Datasheet

GX-6000 Benzene Datasheet
